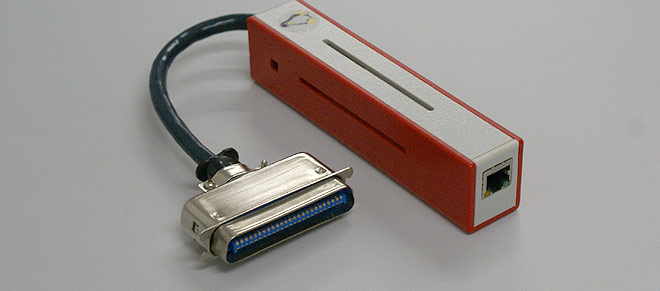

HDW-CX100/S

HDW-CX100/S

Applications:

Collector, Converter, SCSI Tape Drive Emulator (MTE)

Technical Specification:

  • Hardware

    • Processor: AT91RM9200 @ 160MHz
    • RAM memory: 32 MB
    • Flash memory: 16 MB
    • Billing is stored in Flash memory
    • Storage area with non-volatile memory: ~ 16 GB
    • One SCSI port and one ethernet port
    • Serial console port
    • Absence of movable components
    • Internal real-time clock
    • Automatic restart in case of power failure
    • External power supply
    • Input voltages: 110/220 Vac (optional 48 Vdc)
    • Optional: 2 redundant power supplies
    • 19 inch rack support
    • Size: 28 x 155 x 35 mm
  • Software

    • Linux Operating System - Kernel 2.6
    • Telnet - Console
    • FTP (Server and Client) - File transfer
    • SSH - Console and File transfer (SFTP)
    • SNMP - Management
    • Syslog - Log
    • Gzip - Compression
    • NTP Client - Automatic clock setting
    • HTTP - WEB Server
    • Remote set up
  • File Management

    • Backup - data files storage management
    • File storage is organized in directories named by date
    • Automatic file deleting by time interval
    • Automatic file deleting by memory space
  • Thermal and reliability characteristics

    • Operating environment temperature: 0 ~ 45°C
    • Transport environment temperature: -20 ~ +70ºC
    • Operating relative humidity: 30% ~ 80%
    • MTBF: > 20.000 hours
    • MTTR: < 20 minutes
