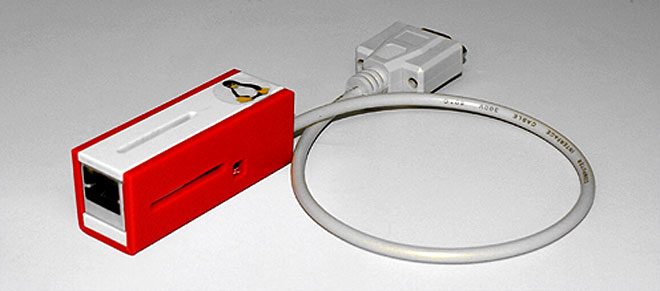

HDW-C100
Applications:
Collector, Buffer, Converter, Remote Terminal
Technical Specification:
-
Hardware
- Processor: NS7520 @ 55 MHz
- RAM memory: 8 MB
- Flash memory: 4 MB
- Billing is stored in Flash memory
- Storage area with non-volatile memory: ~ 2 MB
- One serial port and one Ethernet port
- Serial port can be used as console
- Absence of movable components
- Automatic restart in case of power failure
- External power supply
- Input voltages: 110/220 Vac (48 Vdc opcional)
- Consumption: 2,0 W
- 19 inch rack support
- Serial port: Male DB9
- Size: 78 x 23 mm
- Weight: 70 g
-
Software:
- Linux Operating System - Kernel 2.6
- Telnet - Console
- FTP (Server and Client) - File transfer
- SSH - Console and File transfer (SFTP)
- SNMP - Management
- Syslog - Log
- Gzip - Compression
- NTP Client - Automatic clock setting
- HTTP - WEB Server
- Remote set up
-
Thermal and reliability characteristics
- Operating environment temperature: 0 ~ 45°C
- Transport environment temperature: -20 ~ +70ºC
- Operating relative humidity: 30% ~ 80%
- MTBF: > 30.000 hours
- MTTR: < 20 minutes
